Product Summary
The CC2500RTKR is a low cost true single chip 2.4 GHz transceiver designed for very low power wireless applications. The CC2500RTKR is intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency band at 2400-2483.5 MHz. The applications of the CC2500RTKR include 2400-2483.5 MHz ISM/SRD band systems, Consumer Electronics, Wireless game controllers, Wireless audio, Wireless keyboard and mouse.
Parametrics
CC2500RTKR absolute maximum ratings: (1)Supply voltage: –0.3 to 3.6 V; (2)Voltage on any digital pin: –0.3 to VDD+0.3, max 3.6V ; (3)Voltage on the pins RF_P, RF_N and DCOUPL : –0.3 to 2.0V ; (4)Voltage ramp-up rate: 120 kV/μs ; (5)Input RF level: +10 dBm ; (6)Storage temperature range: –50 150℃; (7)Solder reflow temperature: 260℃; (8)ESD: ＜500 V .
Features
CC2500RTKR features: (1)Small size (QLP 4x4 mm package, 20 pins) ; (2)True single chip 2.4 GHz RF transceiver ; (3)Frequency range: 2400-2483.5 MHz ; (4)High sensitivity (–101 dBm at 10 kbps, 1% packet error rate) ; (5)Programmable data rate up to 500 kbps ; (6)Low current consumption (13.3 mA in RX, 250 kbps, input 30 dB above sensitivity limit) ; (7)Programmable output power up to 0 dBm ; (8)Excellent receiver selectivity and blocking performance; (9)Very few external components: Completely on-chip frequency synthesizer, no external filters or RF switch needed ; (10)Programmable baseband modem ; (11)Ideal for multi-channel operation ; (12)Configurable packet handling hardware ; (13)Suitable for frequency hopping systems due to a fast settling frequency synthesizer ; (14)Optional Forward Error Correction with interleaving ; (15)Separate 64-byte RX and TX data FIFOs ; (16)Efficient SPI interface: All registers can be programmed with one “burst” transfer ; (17)Digital RSSI output .

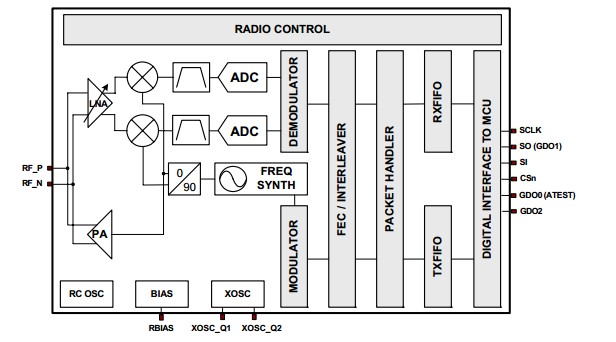

Diagrams
